What I Built

This one takes the multi-OLED encoder prototype and gives it a product to run. The prototype proved an ESP32 could hold several dials and screens on one I2C bus. Here there are four of each, and every dial does a real job.

One ESP32 runs:

1. Three dials and three OLEDs for H, S and V. Screen one shows hue with a colour bar, screen two saturation, screen three value plus the neutral white mix in the corner and the current H/S in its footer.
2. A fourth dial and OLED for the motor. Position and target are both on the screen, and the dial moves a stepper through an A4988.
3. A 24V RGBNW strip. Red, green, blue and a separate neutral white LED, driven through NeoPixelBus.
4. A web page with a hue ring, an SV square, four sliders, five animated scenes, a colour history and the motor position. It reads the board every 180ms, so the dials and the page always agree.

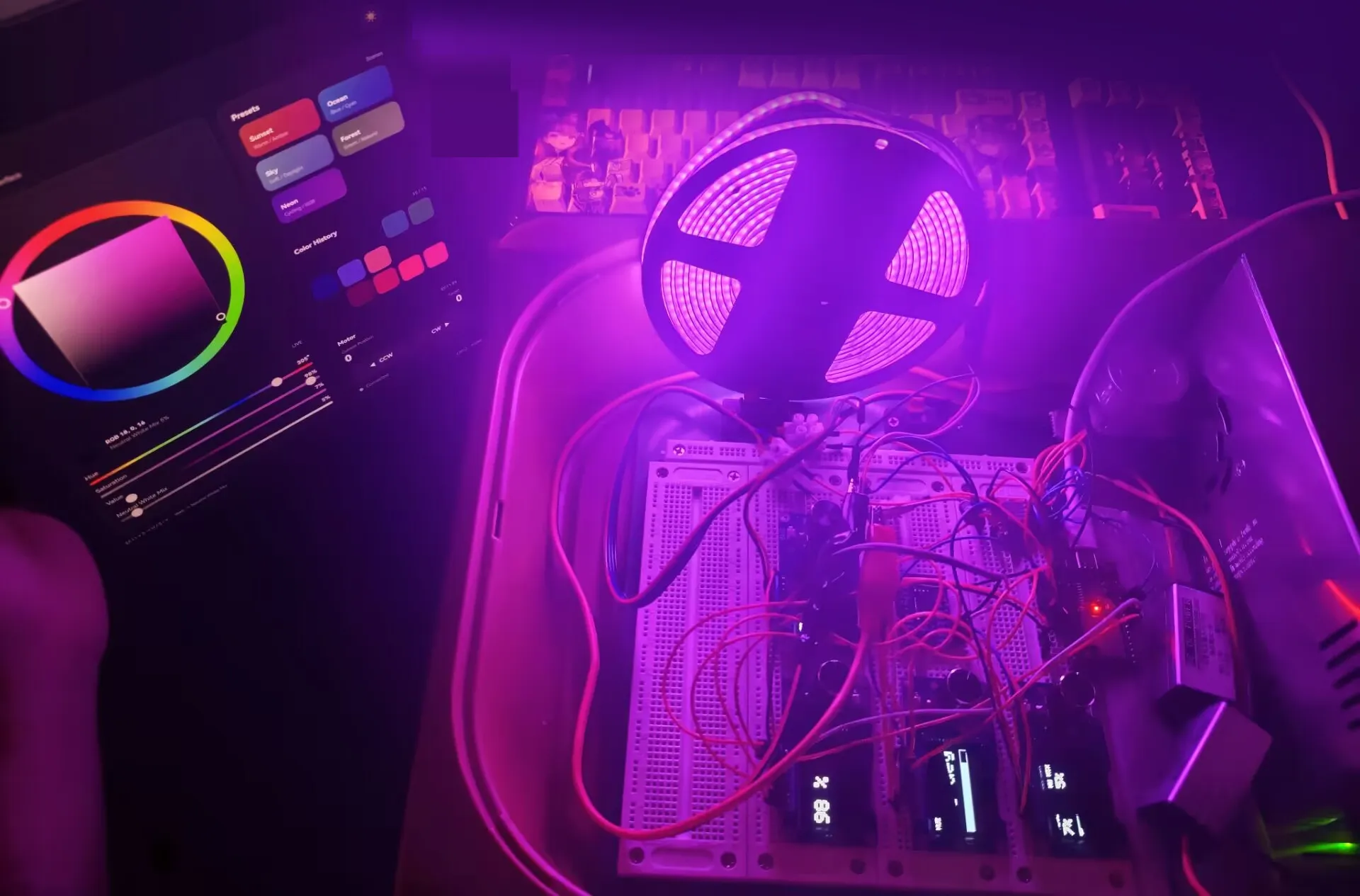

The screenshot below is the same board with the web UI open on the left. The strip is a plain 24V reel, no diffuser, which is why you can see individual LEDs.

Hardware

Pin Map

TCA9548A channels: CH0 to CH3 carry the four OLEDs. Every screen answers to 0x3C, so without the multiplexer they would all print the same frame.

The EC11 modules are wired the same way as in the three-dial version: TRA and TRB to the two GPIOs, CON, PSH and BAK left floating on the modules that pull them up internally. That is 8 GPIOs for four dials, plus 2 for I2C, 1 for the strip and 2 for the stepper.

One Interrupt Handler for Four Dials

The earlier sketch had one ISR per encoder, copy-pasted. Four of them drift. attachInterruptArg passes the encoder index, so there is one body and the pin tables are the only thing that changes:

void IRAM_ATTR isrEncoder(void *arg)
{
  uint8_t idx = (uint8_t)(uintptr_t)arg;

  uint8_t s = (digitalRead(ENC_A_PIN[idx]) << 1) | digitalRead(ENC_B_PIN[idx]);

  encState[idx] = ((encState[idx] << 2) | s) & 0x0F;

  int8_t d = KNOB_DIR[encState[idx]];
  if (d) encDelta[idx] += d;
}

attachInterruptArg(digitalPinToInterrupt(ENC_A_PIN[i]), isrEncoder,
                   (void *)(uintptr_t)i, CHANGE);

KNOB_DIR is the same 16-entry Ben Buxton table. Four quadrature transitions are one physical click, so the accumulator divides by ENC_COUNTS_PER_DETENT before anything moves.

RGBNW: Two Whites, Not One

The strip has four channels, and the interesting one is the fourth. Neutral white is mixed independently of value, and the two of them split the total:

const float nwMix = constrain(outputWhite, 0.0f, 1.0f);
const float rgbValue = constrain(outputVal, 0.0f, 1.0f) * (1.0f - nwMix);

hsvToRgb(outputHue, outputSat, rgbValue, R, G, B);

const uint8_t W = (uint8_t)lroundf(constrain(outputVal, 0.0f, 1.0f) * nwMix * 255.0f);

At neutral white 0 the strip behaves exactly like an RGB strip. Turn it up and the RGB side dims while the white LED takes over the rest, so you can sit at full value and still walk from a saturated colour to a clean white without the hue drifting.

The channel order that is not what the name says

The physical strip here behaves as WRGB. NeoPixelBus serializes the logical RgbwColor as GRBW, so the obvious call is the wrong one:

/*
 * IMPORTANT: the physical WS2814 strip used here behaves as WRGB.
 * NeoGrbwFeature serializes the logical RgbwColor as GRBW, so feeding
 * (R, W, G, B) makes the transmitted bytes become W,R,G,B.
 *
 * With the old (R,G,B,W) call the observed mapping was:
 *   R -> R
 *   G -> W
 *   B -> G
 *   W -> B
 * which exactly explains blue-looking-green and NW-looking-blue.
 */
RgbwColor color(R, W, G, B);

Passing (R, G, B, W) gave green that looked blue and a white channel that looked blue as well. The comment in the sketch lists the four wrong mappings, which is what let me match the symptom to the cause instead of guessing at the wiring.

Smoothing on the Output

Web commands do not arrive at a steady rate. A drag sends updates as fast as the pointer moves, a poll can be silent for a while, and the strip refresh runs at a fixed 16ms. Writing the target straight to the strip shows that unevenness as steps, so the output chases the target with an exponential filter:

const float alpha = 1.0f - expf(-((float)dtMs / LIGHT_SMOOTHING_MS));

float hueDelta = (float)hueValue - outputHue;
while (hueDelta > 180.0f) hueDelta -= 360.0f;   // shortest arc
while (hueDelta < -180.0f) hueDelta += 360.0f;

outputHue   += hueDelta * alpha;
outputSat   += ((float)satValue   / 100.0f - outputSat)   * alpha;
outputVal   += ((float)valValue   / 100.0f - outputVal)   * alpha;
outputWhite += ((float)whiteValue / 100.0f - outputWhite) * alpha;

Hue interpolates through the shortest arc, so dragging from 350 to 10 goes forward through 0 instead of sweeping backwards across the whole wheel. LIGHT_SMOOTHING_MS is 35ms. Residuals below 0.001 are snapped to the target so the strip eventually becomes exactly stable instead of creeping forever, and when nothing is dirty and nothing is still moving, serviceLED returns without touching the strip at all.

Web Page and Two-Way Sync

The page is served from PROGMEM and has a hue ring, an SV square painted on a canvas, the four sliders, five scene presets, a 15-slot colour history and the motor readout with CCW / CW buttons. The theme toggle and the colour history live in localStorage, and the history stores [h, s, v, w] with a migration path for the older [r, g, b] entries.

Keeping the dials and the page in agreement took more care than the UI itself:

• Page to board: commands go through a small queue with a 20ms minimum interval and only one request in flight. A drag fires many updates, and without the queue they pile up and arrive out of order.
• Board to page: /get returns hue, saturation, value, white, a rev revision counter, and the motor’s current and target step. The page polls it every 180ms.
• Not fighting the user: the page skips the sync while a pointer is down, while a scene is animating, or within 220ms of local input, so a poll that lands mid-drag cannot yank the value back.
• Only redraw on change: the returned values are compared with what the page already shows, and updateUI is the only thing that draws.

The board decides nothing about the page’s state; the page never assumes it is the only thing talking to the board. That is the whole trick.

Five Scenes

Sunset, Ocean, Sky, Forest and Neon. Each one is a set of sine terms over H, S, V and the white mix, evaluated per frame:

case "sunset":
  h = 25 + 18 * Math.sin(t * .42);
  s = .88 + .12 * Math.sin(t * .60);
  v = .68 + .22 * Math.cos(t * .33);
  w = .06 + .04 * (.5 + .5 * Math.sin(t * .24));
  break;

Tapping a scene again stops it. Touching the picker, a slider or a dial stops it too, so the animation never fights a manual change.

Motor

The fourth dial and the CCW / CW buttons both write targetStep, and updateMotor() walks currentStep toward it one step per STEP_INTERVAL_US (1000us). Travel is clamped to +/-100000 steps in software, and each detent is 20 steps. The A4988 only needs DIR and STEP; microstepping is set by the jumpers on the module.

The safety note from the sketch header is worth repeating: GPIO12 is a strapping pin. It selects the flash voltage at boot, and it works as DIR here only because the A4988’s DIR input is high impedance. Never add a pull-up on that line, and if the board ever stops booting, move DIR.

Bugs

Bug 1: the OLED that printed nothing

Symptom: three screens came up, the fourth stayed dark. No error, because tcaSelect succeeded.

Cause: the OLED init loop selected the channel, then called begin(0x3C, true). The TCA9548A needs a moment after the channel switch, and the first transfer after it is the one that gets eaten. Three out of four worked depending on timing.

Fix: delay(20) between the channel select and begin, the same pause the three-dial version uses before its self-test number.

Bug 2: green that looked blue

Symptom: red was right, everything else was rotated. Green came out blue-ish, and raising the neutral white mix made it worse.

Cause: the RgbwColor(R, G, B, W) call against a strip whose physical order is WRGB.

Fix: pass (R, W, G, B). Details above.

Bug 3: the web page froze while a dial was being turned

Symptom: turn a dial and the page stops updating until you touch the picker. The board was fine and the serial log kept printing.

Cause: the page only polled when lightInFlight and lightPending were both clear, and a command sent right before the dial movement kept the queue marked busy.

Fix: the guard now skips the poll only for a real local interaction, and the revision counter tells the page that the board’s state moved on.

Bug 4: a worn encoder contact

Symptom: the value dial jumps around and lands back where it started. Net change zero.

Cause: one phase of the EC11 stopped toggling. The state machine sees +1 then -1 and the two cancel.

Diagnosis: print the raw A and B levels while turning the dial. If only one toggles, the contact is worn.

Fix: swap in a spare module. The GPIOs were fine.

Cautions

These are copied from the sketch header because they are the things that bite later:

1. The web UI has no password. Anyone on the same network can set the colour and move the motor. Put the board on its own network, or add server.authenticate() to every handler.
2. 150 RGBW LEDs at full white is roughly 6 to 9A. Keep value off 100% on a small supply, or add a brightness limit in updateLEDStrip().
3. I2C runs at 400kHz with four screens behind the multiplexer. Long or thin wires give garbage on screen; drop I2C_CLOCK to 100000.
4. Arduino compiles every .ino file in the sketch folder. Backups go in a subfolder, never next to the main sketch. A stray copy in the root breaks the build with “redefinition of setup”, which is exactly what happened here.

Result

On boot the board walks through the A4988, the strip, the multiplexer channels and the four screens, then connects and serves the page:

================================
 R2S HSV + MOTOR CONTROLLER
================================
A4988 initialized.
RGBNW strip initialized.
OLED 1 OK
OLED 2 OK
OLED 3 OK
OLED 4 OK
Connecting to YOUR_WIFI_SSID ...
WiFi OK. IP: 192.168.1.xxx
mDNS: http://r2s.local
HTTP server ready.

EC11 #1 -> HUE
EC11 #2 -> SATURATION
EC11 #3 -> VALUE / NW is web-controlled
EC11 #4 -> MOTOR

mDNS is on by default, so http://r2s.local works instead of chasing the DHCP address.

Where it goes next: the white channel still assumes that 255 on the white LED and 255 on the red LED are the same amount of light, and they are not. Real calibration would mean measuring each channel and scaling them, which is the difference between a controller and a light.

Full Code

Libraries: NeoPixelBus, Adafruit SH110X, Adafruit GFX Library, Adafruit BusIO. Board: ESP32 Dev Module.

The WiFi name and password are replaced with placeholders here, the same as they are in the sketch on the board.

/*
 * ============================================================
 * R2S ESP32 HSV + MOTOR CONTROLLER
 * ============================================================
 *
 * Hardware:
 *
 * 4x EC11 + 4x SH1106 OLED
 * 1x TCA9548A
 * 1x 24V RGBNW LED Strip (R/G/B + Neutral White)
 * 1x A4988
 * 1x Stepper Motor
 * WiFi Web Control
 *
 * ============================================================
 * MODULE ASSIGNMENT
 * ============================================================
 *
 * EC11 + OLED #1 -> HUE
 * EC11 + OLED #2 -> SATURATION
 * EC11 + OLED #3 -> VALUE + NEUTRAL WHITE MIX status
 * EC11 + OLED #4 -> MOTOR
 *
 * ============================================================
 * I2C
 * ============================================================
 *
 * ESP32:
 * SDA = GPIO21
 * SCL = GPIO22
 *
 * TCA9548A:
 * CH0 -> OLED #1
 * CH1 -> OLED #2
 * CH2 -> OLED #3
 * CH3 -> OLED #4
 *
 * OLED Address = 0x3C
 *
 * ============================================================
 * EC11
 * ============================================================
 *
 * EC11 #1 HUE
 * A = GPIO25
 * B = GPIO18
 *
 * EC11 #2 SATURATION
 * A = GPIO26
 * B = GPIO27
 *
 * EC11 #3 VALUE
 * A = GPIO4
 * B = GPIO16
 *
 * EC11 #4 MOTOR
 * A = GPIO32
 * B = GPIO33
 *
 * ============================================================
 * RGBW LED STRIP
 * ============================================================
 *
 * DATA = GPIO5
 * LED_COUNT = 150
 *
 * GPIO5 -> 330R -> DIN
 * LED +24V -> External 24V PSU
 * LED GND  -> PSU GND
 * ESP32 GND -> PSU GND
 *
 * ============================================================
 * A4988
 * ============================================================
 *
 * DIR  = GPIO12
 * STEP = GPIO13
 *
 * ============================================================
 * ============================================================
 * NOTES / CAUTIONS  (added by the 2026-09 code review)
 * ============================================================
 *
 * 1) GPIO12 (A4988 DIR) is an ESP32 strapping pin (MTDI): it selects the
 *    flash voltage at boot. It works here only because the A4988 DIR input
 *    is high-impedance - never add a pull-up on this line. If the board ever
 *    stops booting, move DIR to a free pin.
 *
 * 2) The web UI has NO password and /motor moves the carriage: anyone on the
 *    same WLAN can drive it. Put the board on its own AP/VLAN, or add
 *    server.authenticate() to every handler, if that matters.
 *
 * 3) 150 RGBW LEDs at full white can pull ~6-9 A (150 x 40..60 mA). Keep
 *    VALUE away from 100% on a small PSU, or add a brightness limit in
 *    updateLEDStrip().
 *
 * 4) I2C runs at 400 kHz with four OLEDs behind the TCA9548A. Long or thin
 *    wires give garbage on screen - then drop I2C_CLOCK to 100000.
 *
 * 5) Arduino compiles EVERY .ino file in the sketch folder: keep backups in
 *    a subfolder (backup\), never next to the main .ino. A stray copy in the
 *    root was breaking the build with "redefinition of setup".
 */

#include <WiFi.h>
#include <WebServer.h>
#include <ESPmDNS.h>   // http://r2s.local instead of a DHCP-dependent IP
#include <Wire.h>
#include <math.h>

#include <Adafruit_GFX.h>
#include <Adafruit_SH110X.h>

#include <NeoPixelBus.h>


// ============================================================
// WiFi
// ============================================================

// The UI is reachable at http://r2s.local (or at the IP printed on serial).
// Set ENABLE_MDNS to 0 if your network blocks multicast DNS.
#define ENABLE_MDNS 1

const char* ssid     = "YOUR_WIFI_SSID";
const char* password = "YOUR_WIFI_PASSWORD";


// ============================================================
// I2C
// ============================================================

#define SDA_PIN    21
#define SCL_PIN    22
#define TCA_ADDR   0x70
#define OLED_ADDR  0x3C

// 400 kHz is faster for four OLEDs.
// If long wires cause instability, change to 100000.
#define I2C_CLOCK 400000


// ============================================================
// EC11
// ============================================================

// HUE
#define ENC_H_A 25
#define ENC_H_B 18

// SATURATION
#define ENC_S_A 26
#define ENC_S_B 27

// VALUE
#define ENC_V_A 4
#define ENC_V_B 16

// MOTOR
#define ENC_M_A 32
#define ENC_M_B 33


// ============================================================
// RGBNW LED STRIP
// ============================================================

#define LED_PIN   5
#define LED_COUNT 150

NeoPixelBus<
  NeoGrbwFeature,
  NeoEsp32Rmt0800KbpsMethod
> strip(
  LED_COUNT,
  LED_PIN
);


// ============================================================
// A4988
// ============================================================

#define A4988_DIR  12
#define A4988_STEP 13

#define STEP_INTERVAL_US 1000

// One encoder click -> this many motor steps
#define MOTOR_STEPS_PER_DETENT 20

// Software travel limits
#define MOTOR_MIN_STEP -100000L
#define MOTOR_MAX_STEP  100000L

// Set true if physical direction is reversed
#define MOTOR_REVERSE false

long currentStep = 0;
long targetStep  = 0;

unsigned long lastStepMicros = 0;


// ============================================================
// OLED
// ============================================================

Adafruit_SH1106G oled1(128, 64, &Wire, -1);
Adafruit_SH1106G oled2(128, 64, &Wire, -1);
Adafruit_SH1106G oled3(128, 64, &Wire, -1);
Adafruit_SH1106G oled4(128, 64, &Wire, -1);


// ============================================================
// Web Server
// ============================================================

WebServer server(80);


// ============================================================
// RGBNW light state (H / S / V + Neutral White Mix)
// ============================================================
//
// H / S / V describe the RGB colour component.
// W is an independent neutral-white mix level.
// The web UI and the physical H/S/V encoders both update this same state.
//

int hueValue = 0;
int satValue = 100;
int valValue = 100;
int whiteValue = 0;   // Neutral White mix, 0..100


// ============================================================
// Encoder state machine
// ============================================================

// DRAM_ATTR: read from the ISR, so keep it in DRAM (a flash access inside an
// interrupt can stall while the other core is writing flash).
static const int8_t DRAM_ATTR KNOB_DIR[16] = {
   0, -1,  1,  0,
   1,  0,  0, -1,
  -1,  0,  0,  1,
   0,  1, -1,  0
};

// Single source of truth for the encoder pins: setup() and the ISR both use it.
static const uint8_t DRAM_ATTR ENC_A_PIN[4] = {
  ENC_H_A, ENC_S_A, ENC_V_A, ENC_M_A
};

static const uint8_t DRAM_ATTR ENC_B_PIN[4] = {
  ENC_H_B, ENC_S_B, ENC_V_B, ENC_M_B
};

volatile uint8_t encState[4] = {
  0, 0, 0, 0
};

volatile int16_t encDelta[4] = {
  0, 0, 0, 0
};

// Four quadrature transitions = one physical click
#define ENC_COUNTS_PER_DETENT 4

int encAccum[4] = {
  0, 0, 0, 0
};


// ============================================================
// Dirty states
// ============================================================

bool ledDirty = true;

bool oledDirty[4] = {
  true,
  true,
  true,
  true
};


// ============================================================
// Output timing
// ============================================================

// LED output refresh. The strip itself takes roughly 6 ms to transmit
// 150 RGBW pixels at 800 kHz, so ~60 FPS is practical here.
#define LED_UPDATE_INTERVAL_MS 16

// Short exponential smoothing keeps the LED output continuous even when
// web commands arrive less frequently than the physical LED refresh.
#define LIGHT_SMOOTHING_MS 35.0f

unsigned long lastLEDUpdate = 0;

// Rendered/output state. hueValue/satValue/valValue/whiteValue remain the
// authoritative target values shown on the OLED and returned by /get.
float outputHue = 0.0f;
float outputSat = 1.0f;
float outputVal = 1.0f;
float outputWhite = 0.0f;


// OLED service
// Only one dirty OLED is updated at a time.
#define OLED_SERVICE_INTERVAL_MS 20

unsigned long lastOLEDService = 0;

uint8_t oledServiceIndex = 0;


// Motor OLED refresh
// Do not redraw OLED #4 every single motor step.
#define MOTOR_OLED_REFRESH_MS 100

unsigned long lastMotorOLEDRefresh = 0;


// ============================================================
// Function declarations
// ============================================================

void handleRoot();
void handleHSV();
void handleMotor();
void handleGet();


// ============================================================
// TCA9548A
// ============================================================

bool tcaSelect(uint8_t channel)
{
  if (channel > 7)
    return false;

  Wire.beginTransmission(TCA_ADDR);
  Wire.write(1 << channel);

  return Wire.endTransmission() == 0;
}


// ============================================================
// OLED dirty
// ============================================================

void markOLED(uint8_t index)
{
  if (index < 4)
    oledDirty[index] = true;
}


// ============================================================
// HSV -> RGB
// ============================================================

void hsvToRgb(
  float h,
  float s,
  float v,
  uint8_t &r,
  uint8_t &g,
  uint8_t &b
)
{
  float H = fmodf(h, 360.0f);
  if (H < 0.0f) H += 360.0f;

  float S = constrain(s, 0.0f, 1.0f);
  float V = constrain(v, 0.0f, 1.0f);

  float C = V * S;

  float X =
    C * (
      1.0f -
      fabsf(
        fmodf(H / 60.0f, 2.0f) - 1.0f
      )
    );

  float M = V - C;

  float rf = 0;
  float gf = 0;
  float bf = 0;

  if (H < 60)
  {
    rf = C;
    gf = X;
  }
  else if (H < 120)
  {
    rf = X;
    gf = C;
  }
  else if (H < 180)
  {
    gf = C;
    bf = X;
  }
  else if (H < 240)
  {
    gf = X;
    bf = C;
  }
  else if (H < 300)
  {
    rf = X;
    bf = C;
  }
  else
  {
    rf = C;
    bf = X;
  }

  r = constrain((rf + M) * 255.0f, 0, 255);
  g = constrain((gf + M) * 255.0f, 0, 255);
  b = constrain((bf + M) * 255.0f, 0, 255);
}


// ============================================================
// RGBNW strip
// ============================================================

void updateLEDStrip()
{
  uint8_t R, G, B;

  const float nwMix =
    constrain(outputWhite, 0.0f, 1.0f);

  const float rgbValue =
    constrain(outputVal, 0.0f, 1.0f) * (1.0f - nwMix);

  hsvToRgb(
    outputHue,
    outputSat,
    rgbValue,
    R, G, B
  );

  const uint8_t W =
    (uint8_t)lroundf(
      constrain(outputVal, 0.0f, 1.0f) *
      nwMix *
      255.0f
    );

  /*
   * IMPORTANT: the physical WS2814 strip used here behaves as WRGB.
   * NeoGrbwFeature serializes the logical RgbwColor as GRBW, so feeding
   * (R, W, G, B) makes the transmitted bytes become W,R,G,B.
   *
   * With the old (R,G,B,W) call the observed mapping was:
   *   R -> R
   *   G -> W
   *   B -> G
   *   W -> B
   * which exactly explains blue-looking-green and NW-looking-blue.
   */
  RgbwColor color(
    R,
    W,
    G,
    B
  );

  strip.ClearTo(color);
  strip.Show();
}


// ============================================================
// LED service + smooth interpolation
// ============================================================

void serviceLED()
{
  const unsigned long now = millis();

  if (
    now - lastLEDUpdate <
    LED_UPDATE_INTERVAL_MS
  )
  {
    return;
  }

  const unsigned long dtMs =
    (lastLEDUpdate == 0)
      ? LED_UPDATE_INTERVAL_MS
      : (now - lastLEDUpdate);

  lastLEDUpdate = now;

  // Critically damped-ish exponential response. This behaves smoothly for
  // scene animation but settles quickly after manual knob changes.
  const float alpha =
    1.0f - expf(
      -((float)dtMs / LIGHT_SMOOTHING_MS)
    );

  // Hue wraps around 0/360, so interpolate through the shortest arc.
  float hueDelta =
    (float)hueValue - outputHue;

  while (hueDelta > 180.0f) hueDelta -= 360.0f;
  while (hueDelta < -180.0f) hueDelta += 360.0f;

  outputHue += hueDelta * alpha;
  outputSat += ((float)satValue / 100.0f - outputSat) * alpha;
  outputVal += ((float)valValue / 100.0f - outputVal) * alpha;
  outputWhite += ((float)whiteValue / 100.0f - outputWhite) * alpha;

  // Snap tiny residuals so the output eventually becomes exactly stable.
  const float targetHue = (float)hueValue;
  const float targetSat = (float)satValue / 100.0f;
  const float targetVal = (float)valValue / 100.0f;
  const float targetWhite = (float)whiteValue / 100.0f;

  if (fabsf(hueDelta) < 0.03f) outputHue = targetHue;
  if (fabsf(targetSat - outputSat) < 0.001f) outputSat = targetSat;
  if (fabsf(targetVal - outputVal) < 0.001f) outputVal = targetVal;
  if (fabsf(targetWhite - outputWhite) < 0.001f) outputWhite = targetWhite;

  // Normalize hue after interpolation.
  if (outputHue >= 360.0f) outputHue -= 360.0f;
  if (outputHue < 0.0f) outputHue += 360.0f;

  const bool stillMoving =
    fabsf(hueDelta) >= 0.03f ||
    fabsf(targetSat - outputSat) >= 0.001f ||
    fabsf(targetVal - outputVal) >= 0.001f ||
    fabsf(targetWhite - outputWhite) >= 0.001f;

  if (!ledDirty && !stillMoving)
    return;

  updateLEDStrip();
  ledDirty = false;
}


// ============================================================
// OLED standard draw
// ============================================================

void drawValueOLED(
  Adafruit_SH1106G &display,
  const char* title,
  int value,
  int maxValue,
  const char* suffix
)
{
  display.clearDisplay();

  display.setTextColor(
    SH110X_WHITE
  );

  display.setTextSize(1);

  display.setCursor(0, 0);
  display.print(title);

  display.setTextSize(3);

  display.setCursor(0, 16);
  display.print(value);
  display.print(suffix);

  display.drawRect(
    0, 50,
    128, 12,
    SH110X_WHITE
  );

  // constrain(): a value above maxValue (or a maxValue of 0) used to draw the
  // bar outside the frame.
  int fillW = constrain(
    map(
      value,
      0,
      maxValue,
      0,
      126
    ),
    0,
    126
  );

  if (fillW > 0)
  {
    display.fillRect(
      1, 51,
      fillW, 10,
      SH110X_WHITE
    );
  }

  display.display();
}


// ============================================================
// OLED #3 value + neutral white
// ============================================================

void drawValueWhiteOLED()
{
  if (!tcaSelect(2))
    return;

  oled3.clearDisplay();

  oled3.setTextColor(SH110X_WHITE);

  oled3.setTextSize(1);
  oled3.setCursor(0, 0);
  oled3.print("VALUE");

  oled3.setTextSize(2);
  oled3.setCursor(0, 13);
  oled3.print(valValue);
  oled3.print("%");

  oled3.setTextSize(1);
  oled3.setCursor(72, 0);
  oled3.print("NW MIX");

  oled3.setTextSize(2);
  oled3.setCursor(72, 13);
  oled3.print(whiteValue);
  oled3.print("%");

  oled3.drawRect(
    0, 38,
    128, 11,
    SH110X_WHITE
  );

  int fillW =
    constrain(
      map(valValue, 0, 100, 0, 126),
      0,
      126
    );

  if (fillW > 0)
  {
    oled3.fillRect(
      1, 39,
      fillW, 9,
      SH110X_WHITE
    );
  }

  oled3.setTextSize(1);
  oled3.setCursor(0, 53);
  oled3.print("H:");
  oled3.print(hueValue);
  oled3.print(" S:");
  oled3.print(satValue);
  oled3.print("%");

  oled3.display();
}


// ============================================================
// OLED #4 motor
// ============================================================

void drawMotorOLED()
{
  if (!tcaSelect(3))
    return;

  oled4.clearDisplay();

  oled4.setTextColor(
    SH110X_WHITE
  );

  oled4.setTextSize(1);

  oled4.setCursor(0, 0);
  oled4.print("MOTOR");

  oled4.setTextSize(2);

  oled4.setCursor(0, 16);
  oled4.print(currentStep);
  oled4.print(" st");

  oled4.setCursor(0, 40);
  oled4.print("T:");
  oled4.print(targetStep);

  oled4.display();
}


// ============================================================
// OLED service
// ============================================================

void serviceOLED()
{
  unsigned long now = millis();

  if (
    now - lastOLEDService <
    OLED_SERVICE_INTERVAL_MS
  )
  {
    return;
  }

  lastOLEDService = now;

  for (int i = 0; i < 4; i++)
  {
    uint8_t index =
      (oledServiceIndex + i) % 4;

    if (!oledDirty[index])
      continue;

    oledServiceIndex =
      (index + 1) % 4;

    switch (index)
    {
      case 0:
        if (tcaSelect(0))
        {
          drawValueOLED(
            oled1,
            "HUE",
            hueValue,
            360,
            " deg"
          );
        }
        break;

      case 1:
        if (tcaSelect(1))
        {
          drawValueOLED(
            oled2,
            "SATURATION",
            satValue,
            100,
            " %"
          );
        }
        break;

      case 2:
        drawValueWhiteOLED();
        break;

      case 3:
        drawMotorOLED();
        break;
    }

    oledDirty[index] = false;

    break;
  }
}


// ============================================================
// Encoder ISR - one handler for all four encoders
// ============================================================
//
// attachInterruptArg() passes the encoder index, so the body no longer has to
// be copy-pasted four times (the copies had already started to drift).

void IRAM_ATTR isrEncoder(void *arg)
{
  uint8_t idx =
    (uint8_t)(uintptr_t)arg;

  uint8_t s =
    (
      digitalRead(ENC_A_PIN[idx]) << 1
    ) |
    digitalRead(ENC_B_PIN[idx]);

  encState[idx] =
    (
      (encState[idx] << 2) | s
    ) & 0x0F;

  int8_t d =
    KNOB_DIR[encState[idx]];

  if (d)
    encDelta[idx] += d;
}


// ============================================================
// Handle encoders
// ============================================================

void handleEncoders()
{
  int16_t d[4];

  noInterrupts();

  d[0] = encDelta[0];
  d[1] = encDelta[1];
  d[2] = encDelta[2];
  d[3] = encDelta[3];

  encDelta[0] = 0;
  encDelta[1] = 0;
  encDelta[2] = 0;
  encDelta[3] = 0;

  interrupts();


  // ==========================================================
  // HUE
  // ==========================================================

  encAccum[0] += d[0];

  int hueSteps =
    encAccum[0] /
    ENC_COUNTS_PER_DETENT;

  if (hueSteps != 0)
  {
    encAccum[0] -=
      hueSteps *
      ENC_COUNTS_PER_DETENT;

    hueValue =
      constrain(
        hueValue + hueSteps,
        0,
        360
      );

    ledDirty = true;

    markOLED(0);
  }


  // ==========================================================
  // SATURATION
  // ==========================================================

  encAccum[1] += d[1];

  int satSteps =
    encAccum[1] /
    ENC_COUNTS_PER_DETENT;

  if (satSteps != 0)
  {
    encAccum[1] -=
      satSteps *
      ENC_COUNTS_PER_DETENT;

    satValue =
      constrain(
        satValue + satSteps,
        0,
        100
      );

    ledDirty = true;

    markOLED(1);
  }


  // ==========================================================
  // VALUE
  // ==========================================================

  encAccum[2] += d[2];

  int valSteps =
    encAccum[2] /
    ENC_COUNTS_PER_DETENT;

  if (valSteps != 0)
  {
    encAccum[2] -=
      valSteps *
      ENC_COUNTS_PER_DETENT;

    valValue =
      constrain(
        valValue + valSteps,
        0,
        100
      );

    ledDirty = true;

    markOLED(2);
  }


  // ==========================================================
  // MOTOR
  // ==========================================================

  encAccum[3] += d[3];

  int motorDetents =
    encAccum[3] /
    ENC_COUNTS_PER_DETENT;

  if (motorDetents != 0)
  {
    encAccum[3] -=
      motorDetents *
      ENC_COUNTS_PER_DETENT;

    targetStep +=
      (long)motorDetents *
      MOTOR_STEPS_PER_DETENT;

    targetStep =
      constrain(
        targetStep,
        MOTOR_MIN_STEP,
        MOTOR_MAX_STEP
      );

    markOLED(3);
  }
}


// ============================================================
// Motor update
// ============================================================

void updateMotor()
{
  if (
    currentStep ==
    targetStep
  )
  {
    return;
  }

  unsigned long now =
    micros();

  if (
    now - lastStepMicros <
    STEP_INTERVAL_US
  )
  {
    return;
  }

  lastStepMicros = now;

  bool clockwise =
    targetStep > currentStep;

  if (MOTOR_REVERSE)
  {
    clockwise = !clockwise;
  }

  digitalWrite(
    A4988_DIR,
    clockwise ? HIGH : LOW
  );

  digitalWrite(
    A4988_STEP,
    HIGH
  );

  delayMicroseconds(3);

  digitalWrite(
    A4988_STEP,
    LOW
  );

  if (clockwise)
    currentStep++;
  else
    currentStep--;

  /*
   * Do NOT refresh OLED every step.
   * The main loop handles a 100ms motor refresh.
   */

  if (
    currentStep ==
    targetStep
  )
  {
    markOLED(3);
  }
}


// ============================================================
// Set RGBNW state
// ============================================================

void setLightState(
  int h,
  int s,
  int v,
  int w
)
{
  const int oldH = hueValue;
  const int oldS = satValue;
  const int oldV = valValue;
  const int oldW = whiteValue;

  hueValue =
    constrain(
      h,
      0,
      360
    );

  satValue =
    constrain(
      s,
      0,
      100
    );

  valValue =
    constrain(
      v,
      0,
      100
    );

  whiteValue =
    constrain(
      w,
      0,
      100
    );

  if (
    oldH != hueValue ||
    oldS != satValue ||
    oldV != valValue ||
    oldW != whiteValue
  )
  {
    ledDirty = true;
  }

  // Only refresh OLEDs whose displayed data actually changed.
  if (oldH != hueValue)
  {
    markOLED(0);
    markOLED(2); // OLED #3 also shows H in its footer.
  }

  if (oldS != satValue)
  {
    markOLED(1);
    markOLED(2);
  }

  if (oldV != valValue)
    markOLED(2);

  if (oldW != whiteValue)
    markOLED(2);
}


// ============================================================
// Web page
// ============================================================

const char htmlPage[] PROGMEM = R"rawliteral(
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width,initial-scale=1,user-scalable=no">
<title>R²S Control System</title>

<style>
:root{
  --bg:#070707;
  --panel:rgba(25,25,28,.74);
  --panel-soft:rgba(255,255,255,.045);
  --panel-strong:rgba(255,255,255,.075);
  --text:#f5f5f7;
  --muted:rgba(245,245,247,.56);
  --border:rgba(255,255,255,.12);
  --accent:#ff8a2b;
  --good:#30d158;
  --shadow:rgba(0,0,0,.46);
  --hue:0;
}

body.light{
  --bg:#f2f2f7;
  --panel:rgba(255,255,255,.78);
  --panel-soft:rgba(0,0,0,.028);
  --panel-strong:rgba(0,0,0,.045);
  --text:#1c1c1e;
  --muted:rgba(28,28,30,.56);
  --border:rgba(0,0,0,.10);
  --shadow:rgba(0,0,0,.11);
}

*{box-sizing:border-box}
html,body{margin:0;padding:0;min-height:100%}

body{
  min-height:100vh;
  padding:20px;
  display:flex;
  align-items:center;
  justify-content:center;
  overflow-x:hidden;
  font-family:-apple-system,BlinkMacSystemFont,"Segoe UI",Roboto,Arial,sans-serif;
  background:
    radial-gradient(circle at 50% 10%,rgba(255,255,255,.04),transparent 44%),
    var(--bg);
  color:var(--text);
  transition:background .35s ease,color .25s ease;
}

#bg-glow{
  position:fixed;
  inset:-15%;
  z-index:0;
  pointer-events:none;
  opacity:.72;
  filter:blur(100px);
  background:radial-gradient(circle at 50% 45%,rgba(255,110,40,.28),transparent 58%);
  transition:background .45s ease;
}

.app{
  position:relative;
  z-index:2;
  width:min(1160px,100%);
  padding:26px;
  background:var(--panel);
  border:1px solid var(--border);
  border-radius:32px;
  backdrop-filter:blur(30px);
  -webkit-backdrop-filter:blur(30px);
  box-shadow:0 30px 80px var(--shadow);
}

.header{
  display:flex;
  align-items:center;
  justify-content:space-between;
  gap:16px;
  margin-bottom:20px;
}

.brand{display:flex;align-items:center;gap:12px}

.brand-mark{
  width:40px;height:40px;border-radius:13px;
  border:1px solid var(--border);
  background:var(--panel-strong);
  display:flex;align-items:center;justify-content:center;
  font-size:13px;font-weight:800;letter-spacing:-.2px;
}

.title{font-size:21px;font-weight:700;letter-spacing:-.45px}
.subtitle{margin-top:3px;font-size:11px;color:var(--muted);letter-spacing:.3px}

.icon-btn{
  width:42px;height:42px;border-radius:50%;
  border:1px solid var(--border);
  background:var(--panel-strong);
  color:var(--text);
  font-size:18px;
  cursor:pointer;
  display:flex;align-items:center;justify-content:center;
  transition:transform .18s ease,background .18s ease;
  touch-action:manipulation;
}
.icon-btn:hover{transform:scale(1.05);background:rgba(255,255,255,.12)}

.main-grid{
  display:grid;
  grid-template-columns:minmax(0,1.26fr) minmax(330px,.74fr);
  gap:20px;
}

.card{
  padding:20px;
  border-radius:24px;
  border:1px solid var(--border);
  background:var(--panel-soft);
}

.color-card{
  display:flex;
  flex-direction:column;
  align-items:center;
}

.picker-wrap{
  width:min(520px,100%);
  margin:auto;
}

#pickerCanvas{
  display:block;
  width:100%;
  aspect-ratio:1;
  touch-action:none;
  user-select:none;
  -webkit-user-select:none;
  cursor:crosshair;
}

.picker-info{
  display:flex;
  align-items:center;
  justify-content:space-between;
  gap:14px;
  width:100%;
  margin-top:2px;
}

.swatch-row{
  display:flex;
  align-items:center;
  gap:11px;
  min-width:0;
}

.current-swatch{
  width:58px;height:42px;border-radius:12px;
  border:1px solid rgba(255,255,255,.25);
  box-shadow:inset 0 0 0 1px rgba(0,0,0,.16),0 7px 20px rgba(0,0,0,.18);
  flex:none;
}

.rgb-readout{font-size:12px;line-height:1.45}
.rgb-readout strong{font-weight:700}
.rgb-readout span{color:var(--muted)}

.controls{
  width:100%;
  margin-top:18px;
  display:grid;
  gap:14px;
}

.control{display:grid;gap:7px}

.control-head{
  display:flex;
  align-items:center;
  justify-content:space-between;
  font-size:13px;
}

.control-name{opacity:.82}
.control-value{
  font-weight:700;
  font-variant-numeric:tabular-nums;
}

input[type=range]{
  width:100%;
  height:6px;
  margin:0;
  appearance:none;
  -webkit-appearance:none;
  outline:none;
  border-radius:5px;
  background:#3a3a3c;
}

input[type=range]::-webkit-slider-thumb{
  appearance:none;-webkit-appearance:none;
  width:22px;height:22px;border-radius:50%;
  background:#f5f5f7;
  border:2px solid rgba(0,0,0,.10);
  box-shadow:0 2px 8px rgba(0,0,0,.28);
}
input[type=range]::-moz-range-thumb{
  width:20px;height:20px;border-radius:50%;
  background:#f5f5f7;border:2px solid rgba(0,0,0,.10);
}

#h{
  background:linear-gradient(90deg,
    #ff0000 0%,
    #ffff00 16.6%,
    #00ff00 33.3%,
    #00ffff 50%,
    #0000ff 66.6%,
    #ff00ff 83.3%,
    #ff0000 100%);
}

#s{
  background:linear-gradient(90deg,#808080,hsl(var(--hue),100%,50%));
}

#v{
  background:linear-gradient(90deg,#050505,hsl(var(--hue),100%,50%));
}

#w{
  background:linear-gradient(90deg,#5b5b5b,#fff);
}

.side{display:flex;flex-direction:column;gap:16px}

.section-title{
  display:flex;
  align-items:center;
  justify-content:space-between;
  gap:12px;
  margin-bottom:11px;
  font-size:14px;
  font-weight:700;
}

.section-subtitle{font-size:10px;color:var(--muted);font-weight:500}

.scenes{
  display:grid;
  grid-template-columns:repeat(2,1fr);
  gap:9px;
}

.scene{
  position:relative;
  min-height:66px;
  overflow:hidden;
  border:1px solid var(--border);
  border-radius:16px;
  background:rgba(255,255,255,.045);
  color:var(--text);
  cursor:pointer;
  padding:0;
  text-align:left;
  transition:transform .16s ease,border-color .16s ease,background .16s ease;
  touch-action:manipulation;
  -webkit-user-select:none;
  user-select:none;
}
.scene:hover{transform:translateY(-2px);background:rgba(255,255,255,.08)}
.scene.active{border-color:rgba(255,255,255,.42);box-shadow:inset 0 0 0 1px rgba(255,255,255,.08)}

.scene-gradient{position:absolute;inset:0;opacity:.45}
.scene-content{
  position:relative;z-index:2;height:100%;padding:12px;
  display:flex;flex-direction:column;justify-content:flex-end;
}
.scene-name{font-size:13px;font-weight:700}
.scene-description{margin-top:3px;font-size:10px;opacity:.66}

.history{
  display:grid;
  grid-template-columns:repeat(5,1fr);
  gap:8px;
}
.swatch{
  width:100%;aspect-ratio:1;border-radius:11px;
  border:1px solid rgba(255,255,255,.22);
  cursor:pointer;
  transition:transform .13s ease,border-color .13s ease;
  touch-action:manipulation;
  -webkit-user-select:none;
  user-select:none;
}
.swatch:hover{transform:scale(1.06);border-color:rgba(255,255,255,.68)}
.empty-history{
  grid-column:1/-1;
  padding:16px;border-radius:13px;text-align:center;
  background:rgba(255,255,255,.04);color:var(--muted);font-size:12px;
}

.motor-status{
  display:flex;justify-content:space-between;align-items:flex-end;
  gap:14px;margin-bottom:12px;
}
.motor-label{font-size:10px;color:var(--muted)}
.motor-step{margin-top:2px;font-size:24px;font-weight:750;font-variant-numeric:tabular-nums}
.motor-buttons{display:grid;grid-template-columns:1fr 1fr;gap:10px}
.motor-btn{
  border:1px solid var(--border);
  border-radius:15px;
  padding:14px 12px;
  background:rgba(255,255,255,.07);
  color:var(--text);
  font-size:14px;
  font-weight:700;
  cursor:pointer;
  transition:background .15s ease,transform .1s ease;
  touch-action:manipulation;
  -webkit-user-select:none;
  user-select:none;
}
.motor-btn:hover{background:rgba(255,255,255,.12)}
.motor-btn:active{transform:scale(.97)}

.status{
  display:flex;align-items:center;gap:8px;
  margin-top:13px;font-size:11px;color:var(--muted);
}
.status-dot{
  width:8px;height:8px;border-radius:50%;
  background:var(--good);box-shadow:0 0 10px rgba(48,209,88,.4);
}

.footer{
  display:flex;justify-content:space-between;align-items:center;
  gap:14px;margin-top:17px;font-size:10px;color:var(--muted);
}

@media(max-width:860px){
  .main-grid{grid-template-columns:1fr}
}
@media(max-width:560px){
  body{padding:9px}
  .app{padding:14px;border-radius:24px}
  .card{padding:16px;border-radius:20px}
  .title{font-size:18px}
  .main-grid{gap:14px}
  .picker-wrap{width:min(440px,100%)}
}
</style>
</head>

<body>
<div id="bg-glow"></div>

<div class="app">
  <div class="header">
    <div class="brand">
      <div class="brand-mark">R²S</div>
      <div>
        <div class="title">Control System</div>
        <div class="subtitle">RGBNW Lighting / Motor Interface</div>
      </div>
    </div>
    <button class="icon-btn" id="theme-toggle" aria-label="Toggle theme">☀️</button>
  </div>

  <div class="main-grid">
    <div class="card color-card">
      <div class="picker-wrap">
        <canvas id="pickerCanvas" aria-label="Hue wheel and saturation/value picker"></canvas>

        <div class="picker-info">
          <div class="swatch-row">
            <div class="current-swatch" id="current-swatch"></div>
            <div class="rgb-readout">
              <strong id="rgb-value">RGB 255, 0, 0</strong><br>
              <span id="nw-readout">Neutral White Mix 0%</span>
            </div>
          </div>
          <div class="section-subtitle" id="sync-readout">LIVE</div>
        </div>

        <div class="controls">
          <div class="control">
            <div class="control-head">
              <span class="control-name">Hue</span>
              <span class="control-value" id="h-value">0°</span>
            </div>
            <input id="h" type="range" min="0" max="360" value="0">
          </div>

          <div class="control">
            <div class="control-head">
              <span class="control-name">Saturation</span>
              <span class="control-value" id="s-value">100%</span>
            </div>
            <input id="s" type="range" min="0" max="100" value="100">
          </div>

          <div class="control">
            <div class="control-head">
              <span class="control-name">Value</span>
              <span class="control-value" id="v-value">100%</span>
            </div>
            <input id="v" type="range" min="0" max="100" value="100">
          </div>

          <div class="control">
            <div class="control-head">
              <span class="control-name">Neutral White Mix</span>
              <span class="control-value" id="w-value">0%</span>
            </div>
            <input id="w" type="range" min="0" max="100" value="0">
          </div>
        </div>
      </div>
    </div>

    <div class="side">
      <div class="card">
        <div class="section-title">
          <span>Presets</span>
          <span class="section-subtitle">Scenes</span>
        </div>

        <div class="scenes">
          <button class="scene" data-scene="sunset">
            <div class="scene-gradient" style="background:linear-gradient(135deg,#ff6a00,#ff2358)"></div>
            <div class="scene-content">
              <div class="scene-name">Sunset</div>
              <div class="scene-description">Warm / Amber</div>
            </div>
          </button>

          <button class="scene" data-scene="ocean">
            <div class="scene-gradient" style="background:linear-gradient(135deg,#00c6ff,#005bea)"></div>
            <div class="scene-content">
              <div class="scene-name">Ocean</div>
              <div class="scene-description">Blue / Cyan</div>
            </div>
          </button>

          <button class="scene" data-scene="sky">
            <div class="scene-gradient" style="background:linear-gradient(135deg,#89f7fe,#66a6ff)"></div>
            <div class="scene-content">
              <div class="scene-name">Sky</div>
              <div class="scene-description">Soft / Daylight</div>
            </div>
          </button>

          <button class="scene" data-scene="forest">
            <div class="scene-gradient" style="background:linear-gradient(135deg,#56ab2f,#a8e063)"></div>
            <div class="scene-content">
              <div class="scene-name">Forest</div>
              <div class="scene-description">Green / Natural</div>
            </div>
          </button>

          <button class="scene" data-scene="neon">
            <div class="scene-gradient" style="background:linear-gradient(135deg,#7f00ff,#e100ff)"></div>
            <div class="scene-content">
              <div class="scene-name">Neon</div>
              <div class="scene-description">Cycling / RGB</div>
            </div>
          </button>
        </div>
      </div>

      <div class="card">
        <div class="section-title">
          <span>Color History</span>
          <span class="section-subtitle" id="history-count">0 / 15</span>
        </div>
        <div class="history" id="history-grid"></div>
      </div>

      <div class="card">
        <div class="section-title">
          <span>Motor</span>
          <span class="section-subtitle">EC11 #4</span>
        </div>

        <div class="motor-status">
          <div>
            <div class="motor-label">Current Position</div>
            <div class="motor-step" id="current-step">0</div>
          </div>
          <div style="text-align:right">
            <div class="motor-label">Target</div>
            <div class="motor-step" id="target-step">0</div>
          </div>
        </div>

        <div class="motor-buttons">
          <button class="motor-btn" onclick="moveMotor(-1)">◀ &nbsp; CCW</button>
          <button class="motor-btn" onclick="moveMotor(1)">CW &nbsp; ▶</button>
        </div>

        <div class="status">
          <span class="status-dot"></span>
          <span id="status-text">Connecting…</span>
        </div>
      </div>
    </div>
  </div>

  <div class="footer">
    <span>EC11 × 3 → H / S / V &nbsp;·&nbsp; Web → Neutral White Mix</span>
    <span>ESP32 · RGBNW</span>
  </div>
</div>

<script>
/* ===========================================================
   State
   =========================================================== */

let H = 0;
let S = 1;
let V = 1;
let W = 0;

let activeScene = null;
let animationId = null;

let dragging = null;
let lastInteraction = 0;

/* ===========================================================
   Network
   =========================================================== */

let lightPending = false;
let sendTimer = null;
let lastSendTime = 0;
let lightInFlight = false;
let pollInFlight = false;

const SEND_INTERVAL = 20;
const POLL_INTERVAL = 180;

let serverRevision = -1;

/* ===========================================================
   History
   =========================================================== */

const MAX_HISTORY = 15;
let colorHistory = [];

try{
  colorHistory = JSON.parse(
    localStorage.getItem("r2s-color-history") || "[]"
  );
}catch(_){
  colorHistory = [];
}

/* History migration:
   old version stored [r,g,b], new version stores [h,s,v,w].
*/
colorHistory = colorHistory
  .filter(c => Array.isArray(c) && (c.length === 3 || c.length === 4))
  .map(c => {
    if(c.length === 4){
      return c.map(Number);
    }
    const hsv = rgbToHsv(
      Number(c[0]),
      Number(c[1]),
      Number(c[2])
    );
    return [hsv.h,hsv.s,hsv.v,0];
  })
  .filter(c => c.every(n => Number.isFinite(n)))
  .slice(0,MAX_HISTORY);

/* ===========================================================
   DOM
   =========================================================== */

const canvas = document.getElementById("pickerCanvas");
const ctx = canvas.getContext("2d");
const bgGlow = document.getElementById("bg-glow");
const currentSwatch = document.getElementById("current-swatch");
const rgbValue = document.getElementById("rgb-value");
const nwReadout = document.getElementById("nw-readout");
const syncReadout = document.getElementById("sync-readout");

/* ===========================================================
   Picker geometry
   =========================================================== */

let pickerSize = 0;
let pickerCenter = 0;
let ringRadius = 0;
let ringThickness = 0;
let svSize = 0;
let svLeft = 0;
let svTop = 0;
let dpr = 1;

function updatePickerGeometry(){
  const rect = canvas.getBoundingClientRect();
  pickerSize = Math.max(1,rect.width);
  pickerCenter = pickerSize / 2;
  ringRadius = pickerSize * 0.405;
  ringThickness = Math.max(16,pickerSize * 0.052);
  svSize = pickerSize * 0.555;
  svLeft = pickerCenter - svSize / 2;
  svTop = pickerCenter - svSize / 2;

  dpr = Math.min(window.devicePixelRatio || 1,2);

  canvas.width = Math.round(pickerSize * dpr);
  canvas.height = Math.round(pickerSize * dpr);

  ctx.setTransform(dpr,0,0,dpr,0,0);
  drawPicker();
}

/* ===========================================================
   Colour conversion
   =========================================================== */

function hsvToRgb(h,s,v){
  const c = v*s;
  const x = c * (1 - Math.abs((h/60)%2 - 1));
  const m = v-c;

  let r=0,g=0,b=0;

  if(h<60){r=c;g=x}
  else if(h<120){r=x;g=c}
  else if(h<180){g=c;b=x}
  else if(h<240){g=x;b=c}
  else if(h<300){r=x;b=c}
  else{r=c;b=x}

  return [
    Math.round((r+m)*255),
    Math.round((g+m)*255),
    Math.round((b+m)*255)
  ];
}

function rgbToHsv(r,g,b){
  r/=255; g/=255; b/=255;

  const max=Math.max(r,g,b);
  const min=Math.min(r,g,b);
  const d=max-min;

  let h=0;

  if(d!==0){
    if(max===r){
      h=60*(((g-b)/d)%6);
    }else if(max===g){
      h=60*((b-r)/d+2);
    }else{
      h=60*((r-g)/d+4);
    }
  }

  if(h<0) h+=360;

  const s=max===0 ? 0 : d/max;
  return {h,s,v:max};
}

/* Monitor-side approximation of the RGB + neutral-white output. */
function previewRgb(){
  const rgb = hsvToRgb(H,S,V*(1-W));
  const whiteLevel = Math.round(V*W*255);

  return rgb.map(c =>
    Math.round(c + whiteLevel)
  );
}

/* ===========================================================
   Picker drawing
   =========================================================== */

function drawHueRing(){
  const cx=pickerCenter;
  const cy=pickerCenter;
  const radius=ringRadius;

  ctx.save();
  ctx.lineWidth=ringThickness;
  ctx.lineCap="butt";

  if(typeof ctx.createConicGradient === "function"){
    const g=ctx.createConicGradient(-Math.PI/2,cx,cy);
    g.addColorStop(0,"#ff0000");
    g.addColorStop(1/6,"#ffff00");
    g.addColorStop(2/6,"#00ff00");
    g.addColorStop(3/6,"#00ffff");
    g.addColorStop(4/6,"#0000ff");
    g.addColorStop(5/6,"#ff00ff");
    g.addColorStop(1,"#ff0000");

    ctx.beginPath();
    ctx.arc(cx,cy,radius,0,Math.PI*2);
    ctx.strokeStyle=g;
    ctx.stroke();
  }else{
    for(let i=0;i<360;i++){
      const a0=(i/360)*Math.PI*2-Math.PI/2;
      const a1=((i+1.4)/360)*Math.PI*2-Math.PI/2;
      ctx.beginPath();
      ctx.arc(cx,cy,radius,a0,a1);
      ctx.strokeStyle=`hsl(${i},100%,50%)`;
      ctx.stroke();
    }
  }

  ctx.restore();

  /* Fine neutral separators make the ring read like a physical control. */
  ctx.save();
  ctx.lineWidth=1;
  ctx.strokeStyle="rgba(255,255,255,.12)";
  ctx.beginPath();
  ctx.arc(cx,cy,radius-ringThickness/2,0,Math.PI*2);
  ctx.arc(cx,cy,radius+ringThickness/2,0,Math.PI*2);
  ctx.stroke();
  ctx.restore();
}

function drawSvSquare(){
  const hueRgb=hsvToRgb(H,1,1);
  const hueCss=`rgb(${hueRgb[0]},${hueRgb[1]},${hueRgb[2]})`;

  ctx.save();

  /* White -> pure hue */
  const gSat=ctx.createLinearGradient(
    svLeft,svTop,
    svLeft+svSize,svTop
  );
  gSat.addColorStop(0,"#ffffff");
  gSat.addColorStop(1,hueCss);

  ctx.fillStyle=gSat;
  ctx.fillRect(svLeft,svTop,svSize,svSize);

  /* Transparent -> black */
  const gVal=ctx.createLinearGradient(
    0,svTop,
    0,svTop+svSize
  );
  gVal.addColorStop(0,"rgba(0,0,0,0)");
  gVal.addColorStop(1,"rgba(0,0,0,1)");

  ctx.fillStyle=gVal;
  ctx.fillRect(svLeft,svTop,svSize,svSize);

  ctx.strokeStyle="rgba(255,255,255,.28)";
  ctx.lineWidth=1;
  ctx.strokeRect(svLeft+.5,svTop+.5,svSize-1,svSize-1);

  ctx.restore();
}

function drawPicker(){
  if(!pickerSize) return;

  ctx.clearRect(0,0,pickerSize,pickerSize);

  drawHueRing();
  drawSvSquare();

  /* Hue handle */
  const rad=H*Math.PI/180;
  const hx=pickerCenter + ringRadius*Math.sin(rad);
  const hy=pickerCenter - ringRadius*Math.cos(rad);

  ctx.save();
  ctx.beginPath();
  ctx.arc(hx,hy,9,0,Math.PI*2);
  ctx.fillStyle="rgba(0,0,0,.34)";
  ctx.fill();

  ctx.beginPath();
  ctx.arc(hx,hy,8,0,Math.PI*2);
  ctx.fillStyle="hsl(" + H + ",100%,50%)";
  ctx.fill();
  ctx.lineWidth=3;
  ctx.strokeStyle="#fff";
  ctx.stroke();
  ctx.restore();

  /* S/V handle */
  const sx=svLeft + S*svSize;
  const sy=svTop + (1-V)*svSize;

  ctx.save();
  ctx.beginPath();
  ctx.arc(sx,sy,9,0,Math.PI*2);
  ctx.fillStyle="rgba(0,0,0,.36)";
  ctx.fill();

  ctx.beginPath();
  ctx.arc(sx,sy,7,0,Math.PI*2);
  ctx.fillStyle=`rgb(${hsvToRgb(H,S,V).join(",")})`;
  ctx.fill();
  ctx.lineWidth=2.5;
  ctx.strokeStyle="#fff";
  ctx.stroke();
  ctx.restore();
}

/* ===========================================================
   UI state
   =========================================================== */

function updateUI(){
  const rgb=hsvToRgb(H,S,V);
  const preview=previewRgb();

  document.getElementById("h").value=Math.round(H);
  document.getElementById("s").value=Math.round(S*100);
  document.getElementById("v").value=Math.round(V*100);
  document.getElementById("w").value=Math.round(W*100);

  document.getElementById("h-value").textContent=Math.round(H)+"°";
  document.getElementById("s-value").textContent=Math.round(S*100)+"%";
  document.getElementById("v-value").textContent=Math.round(V*100)+"%";
  document.getElementById("w-value").textContent=Math.round(W*100)+"%";

  rgbValue.textContent=`RGB ${rgb.join(", ")}`;
  nwReadout.textContent=`Neutral White Mix ${Math.round(W*100)}%`;

  currentSwatch.style.background=`rgb(${preview.join(",")})`;
  currentSwatch.style.boxShadow=
    `inset 0 0 0 1px rgba(0,0,0,.16),
     0 7px 22px rgba(${preview[0]},${preview[1]},${preview[2]},.22)`;

  document.documentElement.style.setProperty("--hue",H);

  bgGlow.style.background=
    `radial-gradient(
      circle at 50% 45%,
      rgba(${preview[0]},${preview[1]},${preview[2]},.31) 0%,
      transparent 58%
    )`;

  drawPicker();
}

/* ===========================================================
   Network queue
   =========================================================== */

function queueLight(immediate=false){
  lastInteraction=Date.now();
  lightPending=true;

  if(immediate){
    flushLight();
    return;
  }

  if(sendTimer) return;

  const wait=Math.max(
    0,
    SEND_INTERVAL-(Date.now()-lastSendTime)
  );

  sendTimer=setTimeout(flushLight,wait);
}

function flushLight(){
  if(sendTimer){
    clearTimeout(sendTimer);
    sendTimer=null;
  }

  if(!lightPending) return;

  if(lightInFlight){
    sendTimer=setTimeout(flushLight,SEND_INTERVAL);
    return;
  }

  lightPending=false;
  lastSendTime=Date.now();

  const h=Math.round(H);
  const s=Math.round(S*100);
  const v=Math.round(V*100);
  const w=Math.round(W*100);

  lightInFlight=true;

  fetch(`/hsv?value=${h},${s},${v},${w}`,{cache:"no-store"})
    .then(r=>{
      if(!r.ok) throw new Error("HTTP "+r.status);
      syncReadout.textContent="LIVE";
      lightInFlight=false;
    })
    .catch(()=>{
      lightInFlight=false;
      document.getElementById("status-text").textContent="Color command failed";
      syncReadout.textContent="RETRY";
    });

  /* A drag can change state again while this request is in flight. */
  if(lightPending){
    sendTimer=setTimeout(flushLight,SEND_INTERVAL);
  }
}

/* ===========================================================
   Picker interaction
   =========================================================== */

function pointerPos(e){
  const rect=canvas.getBoundingClientRect();
  return {
    x:e.clientX-rect.left,
    y:e.clientY-rect.top
  };
}

function pickMode(pos){
  const dx=pos.x-pickerCenter;
  const dy=pos.y-pickerCenter;
  const radius=Math.hypot(dx,dy);

  if(
    radius >= ringRadius-ringThickness &&
    radius <= ringRadius+ringThickness
  ){
    return "hue";
  }

  if(
    pos.x>=svLeft &&
    pos.x<=svLeft+svSize &&
    pos.y>=svTop &&
    pos.y<=svTop+svSize
  ){
    return "sv";
  }

  return null;
}

function applyPickerPosition(pos){
  const mode=dragging || pickMode(pos);

  if(mode==="hue"){
    const angle=Math.atan2(
      pos.x-pickerCenter,
      -(pos.y-pickerCenter)
    );

    H=(angle*180/Math.PI+360)%360;
    return;
  }

  if(mode==="sv"){
    S=Math.max(
      0,
      Math.min(
        1,
        (pos.x-svLeft)/svSize
      )
    );

    V=Math.max(
      0,
      Math.min(
        1,
        1-(pos.y-svTop)/svSize
      )
    );
  }
}

canvas.addEventListener("pointerdown",e=>{
  e.preventDefault();
  stopScene();
  updatePickerGeometry();

  const mode=pickMode(pointerPos(e));
  if(!mode) return;

  dragging=mode;

  try{canvas.setPointerCapture(e.pointerId)}catch(_){}

  applyPickerPosition(pointerPos(e));
  updateUI();
  queueLight();
});

canvas.addEventListener("pointermove",e=>{
  if(!dragging) return;
  e.preventDefault();

  applyPickerPosition(pointerPos(e));
  updateUI();
  queueLight();
});

canvas.addEventListener("pointerup",e=>{
  if(!dragging) return;

  applyPickerPosition(pointerPos(e));
  updateUI();
  addColorToHistory([H,S,V,W]);
  queueLight(true);

  dragging=null;

  try{canvas.releasePointerCapture(e.pointerId)}catch(_){}
});

canvas.addEventListener("pointercancel",()=>{
  dragging=null;
});

/* ===========================================================
   Sliders
   =========================================================== */

function bindSlider(id,setter){
  const el=document.getElementById(id);

  el.addEventListener("input",()=>{
    stopScene();
    setter(Number(el.value));
    updateUI();
    queueLight();
  });

  el.addEventListener("change",()=>{
    addColorToHistory([H,S,V,W]);
    queueLight(true);
  });
}

bindSlider("h",v=>H=v);
bindSlider("s",v=>S=v/100);
bindSlider("v",v=>V=v/100);
bindSlider("w",v=>W=v/100);

/* ===========================================================
   History
   =========================================================== */

function addColorToHistory(state){
  const normalized=[
    Number(state[0]),
    Number(state[1]),
    Number(state[2]),
    Number(state[3])
  ];

  const duplicate=colorHistory.some(c=>
    Math.round(c[0])===Math.round(normalized[0]) &&
    Math.abs(c[1]-normalized[1])<.0001 &&
    Math.abs(c[2]-normalized[2])<.0001 &&
    Math.abs(c[3]-normalized[3])<.0001
  );

  if(duplicate) return;

  colorHistory.unshift(normalized);

  if(colorHistory.length>MAX_HISTORY){
    colorHistory.pop();
  }

  try{
    localStorage.setItem(
      "r2s-color-history",
      JSON.stringify(colorHistory)
    );
  }catch(_){}

  renderHistory();
}

function renderHistory(){
  const grid=document.getElementById("history-grid");
  grid.innerHTML="";

  document.getElementById("history-count").textContent=
    colorHistory.length+" / "+MAX_HISTORY;

  if(colorHistory.length===0){
    grid.innerHTML=
      `<div class="empty-history">Your recently used colors will appear here.</div>`;
    return;
  }

  colorHistory.forEach(state=>{
    const [h,s,v,w]=state;
    const rgb=hsvToRgb(h,s,v*(1-w));
    const whiteLevel=Math.round(v*w*255);
    const preview=rgb.map(c=>Math.min(255,Math.round(c+whiteLevel)));

    const swatch=document.createElement("div");
    swatch.className="swatch";
    swatch.style.background=`rgb(${preview.join(",")})`;
    swatch.title=`H ${Math.round(h)}° · S ${Math.round(s*100)}% · V ${Math.round(v*100)}% · NW ${Math.round(w*100)}%`;

    swatch.addEventListener("click",()=>{
      stopScene();

      H=h;
      S=s;
      V=v;
      W=w;

      updateUI();
      queueLight(true);
    });

    grid.appendChild(swatch);
  });
}

/* ===========================================================
   Scenes
   =========================================================== */

function stopScene(){
  if(animationId){
    cancelAnimationFrame(animationId);
    animationId=null;
  }

  if(activeScene===null) return;

  document.querySelectorAll(".scene").forEach(btn=>{
    btn.classList.remove("active");
  });

  activeScene=null;
}

function startScene(scene){
  stopScene();
  activeScene=scene;

  const button=document.querySelector(
    `.scene[data-scene="${scene}"]`
  );

  if(button) button.classList.add("active");

  function frame(){
    if(activeScene!==scene) return;

    const t=performance.now()/1000;

    let h=H;
    let s=S;
    let v=V;
    let w=W;

    switch(scene){
      case "sunset":
        h=25+18*Math.sin(t*.42);
        s=.88+.12*Math.sin(t*.60);
        v=.68+.22*Math.cos(t*.33);
        w=.06+.04*(.5+.5*Math.sin(t*.24));
        break;

      case "ocean":
        h=195+25*Math.sin(t*.55);
        s=.70+.25*Math.sin(t*.80);
        v=.62+.30*Math.abs(Math.sin(t*.90));
        w=.01;
        break;

      case "sky":
        h=210+12*Math.sin(t*.20);
        s=.35+.18*Math.sin(t*.45);
        v=.90+.08*Math.cos(t*.24);
        w=.18;
        break;

      case "forest":
        h=118+16*Math.sin(t*.40);
        s=.63+.22*Math.sin(t*.60);
        v=.48+.25*Math.abs(Math.sin(t*.75));
        w=.08;
        break;

      case "neon":
        h=(t*24)%360;
        s=1;
        v=.78+.22*Math.sin(t*1.5);
        w=0;
        break;
    }

    H=(h+360)%360;
    S=Math.max(0,Math.min(1,s));
    V=Math.max(0,Math.min(1,v));
    W=Math.max(0,Math.min(1,w));

    updateUI();
    queueLight();

    animationId=requestAnimationFrame(frame);
  }

  frame();
}

document.querySelectorAll(".scene").forEach(button=>{
  button.addEventListener("click",()=>{
    const scene=button.dataset.scene;

    if(activeScene===scene){
      stopScene();
    }else{
      startScene(scene);
    }
  });
});

/* ===========================================================
   Motor
   =========================================================== */

const MOTOR_STEPS_PER_DETENT=20;
const MOTOR_LIMIT=100000;

function moveMotor(dir){
  const el=document.getElementById("target-step");

  if(el){
    let target=parseInt(el.textContent,10);

    if(Number.isFinite(target)){
      target=Math.max(
        -MOTOR_LIMIT,
        Math.min(
          MOTOR_LIMIT,
          target+dir*MOTOR_STEPS_PER_DETENT
        )
      );

      el.textContent=target;
    }
  }

  fetch(`/motor?dir=${dir}`,{cache:"no-store"})
    .then(r=>{
      if(!r.ok) throw new Error("HTTP "+r.status);
    })
    .catch(()=>{
      document.getElementById("status-text").textContent="Motor command failed";
    });
}

/* ===========================================================
   Polling / bidirectional sync
   =========================================================== */

function poll(){
  if(
    pollInFlight ||
    dragging ||
    lightInFlight ||
    lightPending
  ){
    return;
  }

  pollInFlight=true;

  fetch("/get",{cache:"no-store"})
    .then(r=>{
      if(!r.ok) throw new Error("HTTP "+r.status);
      return r.json();
    })
    .then(d=>{
      const localRecentlyChanged=
        Date.now()-lastInteraction < 220;

      const serverRev=Number(d.rev);

      if(
        !localRecentlyChanged &&
        !activeScene &&
        Number.isFinite(Number(d.h)) &&
        Number.isFinite(Number(d.s)) &&
        Number.isFinite(Number(d.v)) &&
        Number.isFinite(Number(d.w))
      ){
        H=Number(d.h);
        S=Number(d.s)/100;
        V=Number(d.v)/100;
        W=Number(d.w)/100;

        serverRevision=Number.isFinite(serverRev)
          ? serverRev
          : serverRevision;

        updateUI();
      }

      if(Number.isFinite(serverRev) && serverRev!==serverRevision){
        serverRevision=serverRev;
      }

      document.getElementById("current-step").textContent=d.currentStep;
      document.getElementById("target-step").textContent=d.targetStep;
      document.getElementById("status-text").textContent="Connected";
      syncReadout.textContent="LIVE";
    })
    .catch(()=>{
      document.getElementById("status-text").textContent="Connection lost";
      syncReadout.textContent="OFFLINE";
    })
    .finally(()=>{
      pollInFlight=false;
    });
}

/* ===========================================================
   Theme
   =========================================================== */

const themeToggle=document.getElementById("theme-toggle");

let savedTheme="dark";
try{
  savedTheme=localStorage.getItem("r2s-theme") || "dark";
}catch(_){}

function applyTheme(theme){
  if(theme==="light"){
    document.body.classList.add("light");
    themeToggle.textContent="🌙";
  }else{
    document.body.classList.remove("light");
    themeToggle.textContent="☀️";
  }
}

applyTheme(savedTheme);

themeToggle.addEventListener("click",()=>{
  const next=document.body.classList.contains("light") ? "dark" : "light";

  try{
    localStorage.setItem("r2s-theme",next);
  }catch(_){}

  applyTheme(next);
});

/* ===========================================================
   Init
   =========================================================== */

renderHistory();
updatePickerGeometry();
updateUI();
poll();

window.addEventListener("resize",()=>{
  updatePickerGeometry();
});

setInterval(poll,POLL_INTERVAL);

document.addEventListener("visibilitychange",()=>{
  if(!document.hidden){
    poll();
  }
});
</script>
</body>
</html>
)rawliteral";


// ============================================================
// Web root
// ============================================================

void handleRoot()
{
  // Prevent browser from using an old embedded page
  server.sendHeader(
    "Cache-Control",
    "no-store, no-cache, must-revalidate"
  );

  server.send_P(
    200,
    "text/html; charset=utf-8",
    htmlPage
  );
}


// ============================================================
// Web RGBNW light state
// ============================================================

void handleHSV()
{
  if (server.hasArg("value"))
  {
    /*
     * Accept both:
     *   h,s,v
     *   h,s,v,w
     *
     * Keeping the old 3-value form makes the endpoint backward compatible.
     */
    String value = server.arg("value");

    const char *p = value.c_str();
    char *end = NULL;

    long h = strtol(p, &end, 10);

    if (end != p && *end == ',')
    {
      const char *sp = end + 1;
      long s = strtol(sp, &end, 10);

      if (end != sp && *end == ',')
      {
        const char *vp = end + 1;
        long v = strtol(vp, &end, 10);

        if (end != vp)
        {
          long w = whiteValue;

          if (*end == ',')
          {
            const char *wp = end + 1;
            long parsedW = strtol(wp, &end, 10);

            if (end != wp)
              w = parsedW;
          }

          setLightState(
            (int)h,
            (int)s,
            (int)v,
            (int)w
          );
        }
      }
    }
  }

  server.send(
    200,
    "text/plain",
    "OK"
  );
}


// ============================================================
// Web Motor
// ============================================================

void handleMotor()
{
  if (
    server.hasArg("dir")
  )
  {
    int dir =
      server
        .arg("dir")
        .toInt();

    if (dir > 0)
    {
      targetStep +=
        MOTOR_STEPS_PER_DETENT;
    }
    else if (dir < 0)
    {
      targetStep -=
        MOTOR_STEPS_PER_DETENT;
    }

    targetStep =
      constrain(
        targetStep,
        MOTOR_MIN_STEP,
        MOTOR_MAX_STEP
      );

    markOLED(3);
  }

  server.send(
    200,
    "text/plain",
    "OK"
  );
}


// ============================================================
// Web GET
// ============================================================

void handleGet()
{
  char buf[220];

  static uint32_t stateRevision = 0;

  /*
   * The revision counter is maintained by comparing the last sent light state.
   * This avoids adding another write on every update while still allowing
   * multiple browser clients to notice an externally changed state quickly.
   */
  static int lastH = -1;
  static int lastS = -1;
  static int lastV = -1;
  static int lastW = -1;

  if (
    lastH != hueValue ||
    lastS != satValue ||
    lastV != valValue ||
    lastW != whiteValue
  )
  {
    lastH = hueValue;
    lastS = satValue;
    lastV = valValue;
    lastW = whiteValue;
    stateRevision++;
  }

  snprintf(
    buf,
    sizeof(buf),

    "{"
      "\"h\":%d,"
      "\"s\":%d,"
      "\"v\":%d,"
      "\"w\":%d,"
      "\"rev\":%lu,"
      "\"currentStep\":%ld,"
      "\"targetStep\":%ld"
    "}",

    hueValue,
    satValue,
    valValue,
    whiteValue,
    (unsigned long)stateRevision,
    currentStep,
    targetStep
  );

  server.send(
    200,
    "application/json",
    buf
  );
}


// ============================================================
// WiFi watchdog
// ============================================================
//
// Non-blocking. Without this, a dropped link (router reboot, out of range)
// left the web UI dead until the board was power cycled.

#define WIFI_RETRY_INTERVAL_MS 5000

unsigned long lastWiFiRetry = 0;

void serviceWiFi()
{
  if (WiFi.status() == WL_CONNECTED)
    return;

  unsigned long now =
    millis();

  if (now - lastWiFiRetry < WIFI_RETRY_INTERVAL_MS)
    return;

  lastWiFiRetry = now;

  Serial.println("WiFi lost, reconnecting...");

  WiFi.disconnect();
  WiFi.begin(ssid, password);
}


// ============================================================
// SETUP
// ============================================================

void setup()
{
  outputHue = (float)hueValue;
  outputSat = (float)satValue / 100.0f;
  outputVal = (float)valValue / 100.0f;
  outputWhite = (float)whiteValue / 100.0f;

  Serial.begin(115200);

  delay(500);

  Serial.println();
  Serial.println(
    "================================"
  );

  Serial.println(
    " R2S HSV + MOTOR CONTROLLER"
  );

  Serial.println(
    "================================"
  );


  // ==========================================================
  // A4988
  // ==========================================================

  pinMode(
    A4988_DIR,
    OUTPUT
  );

  pinMode(
    A4988_STEP,
    OUTPUT
  );

  digitalWrite(
    A4988_DIR,
    LOW
  );

  digitalWrite(
    A4988_STEP,
    LOW
  );

  Serial.println(
    "A4988 initialized."
  );


  // ==========================================================
  // RGBNW
  // ==========================================================

  strip.Begin();

  strip.Show();

  Serial.println(
    "RGBNW strip initialized."
  );


  // ==========================================================
  // I2C
  // ==========================================================

  Wire.begin(
    SDA_PIN,
    SCL_PIN
  );

  Wire.setClock(
    I2C_CLOCK
  );

  delay(100);


  // ==========================================================
  // OLED INIT
  // ==========================================================

  Adafruit_SH1106G*
  displays[4] = {
    &oled1,
    &oled2,
    &oled3,
    &oled4
  };


  for (
    int ch = 0;
    ch < 4;
    ch++
  )
  {
    if (
      !tcaSelect(ch)
    )
    {
      Serial.printf(
        "TCA CH%d FAIL\n",
        ch
      );

      continue;
    }

    delay(20);

    if (
      displays[ch]->begin(
        OLED_ADDR,
        true
      )
    )
    {
      Serial.printf(
        "OLED %d OK\n",
        ch + 1
      );

      displays[ch]->clearDisplay();

      displays[ch]->setTextColor(
        SH110X_WHITE
      );

      displays[ch]->setTextSize(3);

      displays[ch]->setCursor(
        45,
        18
      );

      displays[ch]->print(
        ch + 1
      );

      displays[ch]->display();
    }
    else
    {
      Serial.printf(
        "OLED %d FAIL\n",
        ch + 1
      );
    }
  }


  delay(800);


  // ==========================================================
  // EC11: pins + initial state + interrupts in one pass
  // ==========================================================

  for (int i = 0; i < 4; i++)
  {
    pinMode(ENC_A_PIN[i], INPUT_PULLUP);
    pinMode(ENC_B_PIN[i], INPUT_PULLUP);

    encState[i] =
      (digitalRead(ENC_A_PIN[i]) << 1) |
      digitalRead(ENC_B_PIN[i]);

    attachInterruptArg(
      digitalPinToInterrupt(ENC_A_PIN[i]),
      isrEncoder,
      (void *)(uintptr_t)i,
      CHANGE
    );

    attachInterruptArg(
      digitalPinToInterrupt(ENC_B_PIN[i]),
      isrEncoder,
      (void *)(uintptr_t)i,
      CHANGE
    );
  }


  // ==========================================================
  // Initial outputs
  // ==========================================================

  ledDirty = true;

  oledDirty[0] = true;
  oledDirty[1] = true;
  oledDirty[2] = true;
  oledDirty[3] = true;


  // ==========================================================
  // WiFi
  // ==========================================================

  WiFi.mode(
    WIFI_STA
  );

  WiFi.setSleep(
    false
  );

  WiFi.setTxPower(
    WIFI_POWER_11dBm
  );


  Serial.printf(
    "Connecting to %s ",
    ssid
  );


  WiFi.begin(
    ssid,
    password
  );


  uint32_t start =
    millis();


  while (
    WiFi.status() !=
      WL_CONNECTED &&
    millis() - start <
      20000
  )
  {
    delay(500);

    Serial.print(".");
  }


  Serial.println();


  if (
    WiFi.status() ==
    WL_CONNECTED
  )
  {
    Serial.print(
      "WiFi OK. IP: "
    );

    Serial.println(
      WiFi.localIP()
    );
  }
  else
  {
    Serial.println(
      "WiFi failed."
    );
  }


  // ==========================================================
  // HTTP
  // ==========================================================

  server.on(
    "/",
    handleRoot
  );

  server.on(
    "/hsv",
    handleHSV
  );

  server.on(
    "/motor",
    handleMotor
  );

  server.on(
    "/get",
    handleGet
  );

  server.begin();


  // ==========================================================
  // mDNS: reach the UI as http://r2s.local
  // ==========================================================

  #if ENABLE_MDNS
  if (MDNS.begin("r2s"))
  {
    MDNS.addService("http", "tcp", 80);

    Serial.println("mDNS: http://r2s.local");
  }
  #endif


  Serial.println(
    "HTTP server ready."
  );


  Serial.println();
  Serial.println(
    "EC11 #1 -> HUE"
  );

  Serial.println(
    "EC11 #2 -> SATURATION"
  );

  Serial.println(
    "EC11 #3 -> VALUE / NW is web-controlled"
  );

  Serial.println(
    "EC11 #4 -> MOTOR"
  );

  Serial.println();
}


// ============================================================
// LOOP
// ============================================================

void loop()
{
  // Web server
  server.handleClient();


  // Keep the link alive. The ESP32 core 3.x mDNS responder runs in its own
  // task, so there is nothing to pump here (MDNS.update() no longer exists).
  serviceWiFi();


  // Physical encoders
  handleEncoders();


  // Stepper
  updateMotor();


  // RGBNW LED
  serviceLED();


  // Periodic motor OLED refresh
  if (
    currentStep != targetStep &&
    millis() -
      lastMotorOLEDRefresh >=
      MOTOR_OLED_REFRESH_MS
  )
  {
    lastMotorOLEDRefresh =
      millis();

    markOLED(3);
  }


  // OLED service
  serviceOLED();


  // Yield
  delay(1);
}
